Product Specification
1.Elegant & simple design -- Suitable for high-end meeting rooms, auditoriums, small conference halls, screening rooms, multi-functional halls, and other venues.
2. Ergonomic contour & quiet auto return -- High-end soft sofa-style auditorium seat with medium-height backrest, continuous raised back and lumbar support made of super-comfortable molded sponge, effectively alleviating fatigue from prolonged sitting. Double torsion spring mechanism with rubber pads ensures silent and precise seat cushion return.
3. High-resilience antibacterial foam -- Seat cushion: 445×425×80mm, density 50-55kg/m³; back cushion: 560×510×70mm, density 45-50kg/m³. Made of polyurethane high-resilience foam with antibacterial properties.
4. Practical writing board -- ABS injection molded (300×261×15mm) with integrated die-cast aluminium head, damping rotation, and polished & sprayed bracket.
5. Premium solid oak armrests -- Imported solid oak (432×80×27mm). Armrest bracket undergoes phosphating and electrostatic spraying, 72h salt spray resistance. Armrest cover is PP injection molded with hidden pressure-burst screws and dust covers.
6. Sturdy & durable construction -- Seat outer shell: PP injection molded (494×430×124mm, ≥1.6kg); back outer shell: PP injection molded (729×523×135mm, ≥1.5kg). Inner panels are 15mm high-quality curved board. Stand: 1.8mm cold-rolled steel, stamped and sprayed, with fireproof board veneers on both sides. High-quality robot-welded steel frame.
Detailed Specifications
Upholstery fabric – High-grade knitted fabric, anti-static, mothproof, wrinkle-resistant, and anti-pilling.
Foam – High-resilience polyurethane foam with antibacterial properties. Seat foam density 50-55kg/m³, back foam density 45-50kg/m³.
Return mechanism – Double torsion springs with rubber pads for quiet and precise operation.
Writing board – ABS injection molded (300×261×15mm) with integrated die-cast aluminium head, damping rotation. Bracket is polished and sprayed.
Armrest – Imported solid oak (432×80×27mm). Armrest bracket: phosphating and electrostatic spraying, salt spray resistance 72h. Armrest cover: PP injection molded, fixed with hidden pressure-burst screws and dust covers.
Inner panels (seat & back) – 15mm high-quality curved board.
Outer shells (seat & back) – PP injection molded. Seat shell: 494×430×124mm, ≥1.6kg. Back shell: 729×523×135mm, ≥1.5kg. Sturdy and noiseless.
Stand / frame – 1.8mm cold-rolled steel, stamped and sprayed, with fireproof board veneers on both sides. High-quality robot-welded steel.
Floor fixing – Hidden screws with dust covers (included on armrest cover). Stand provides stable floor mounting.

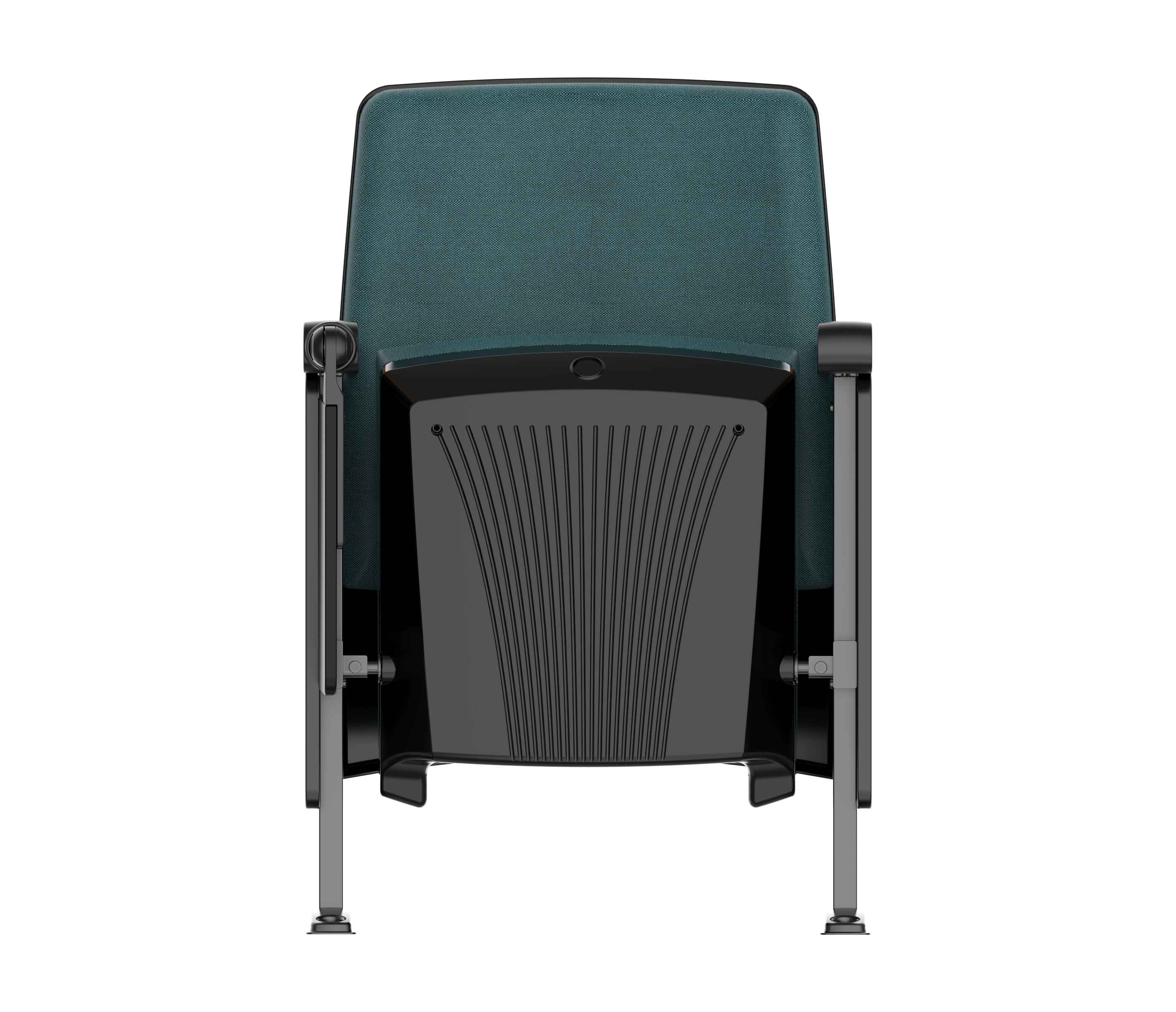

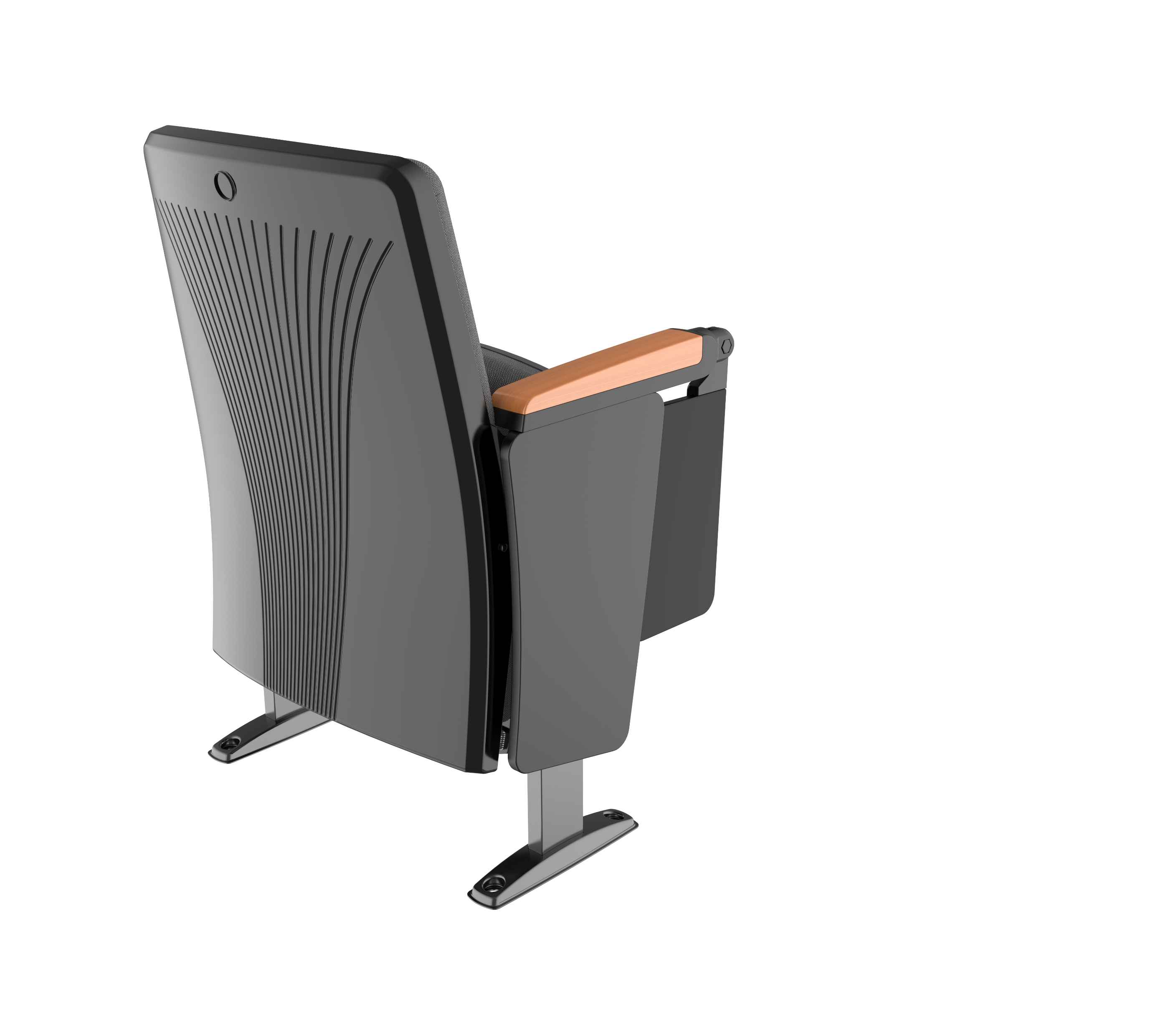

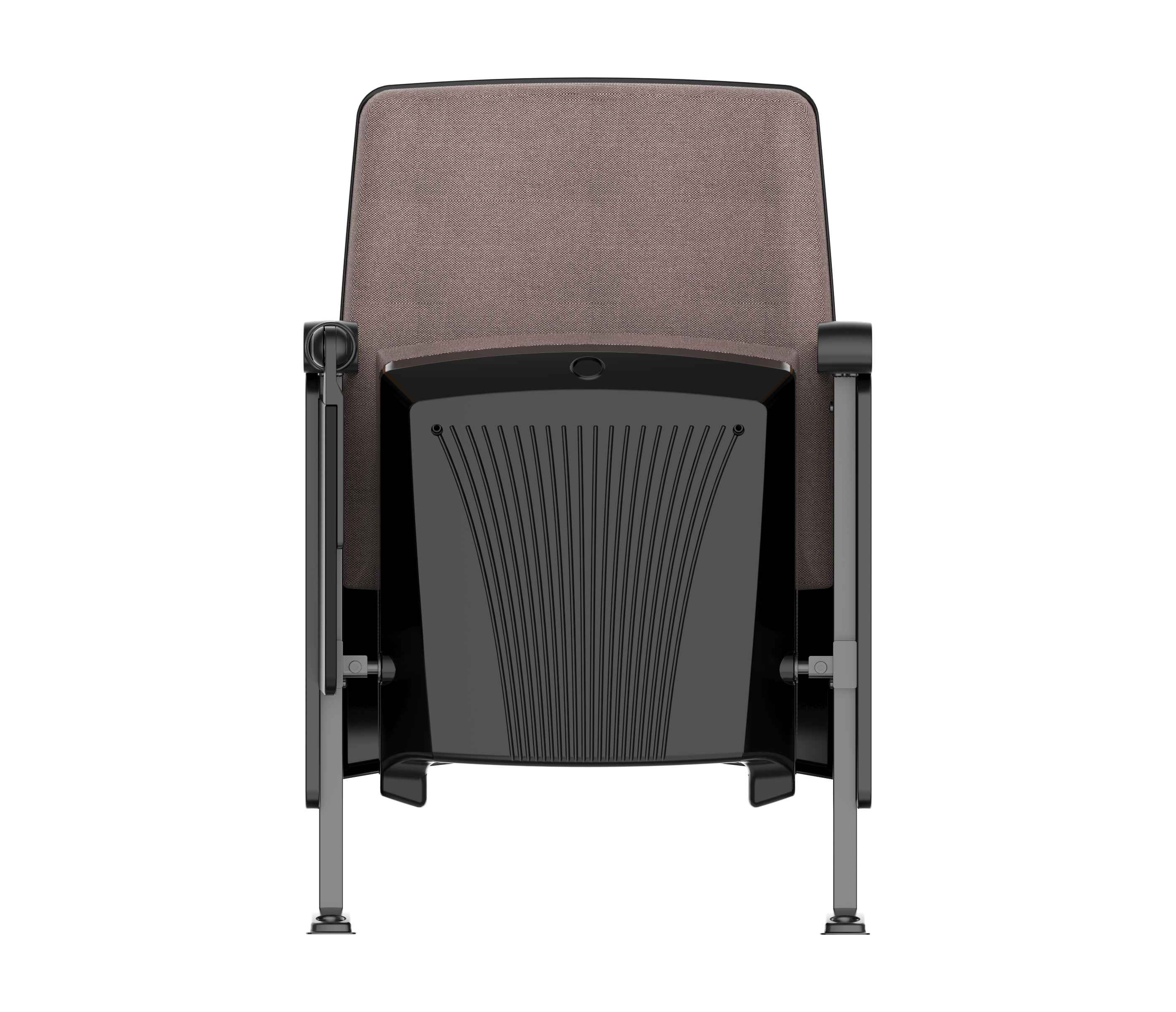

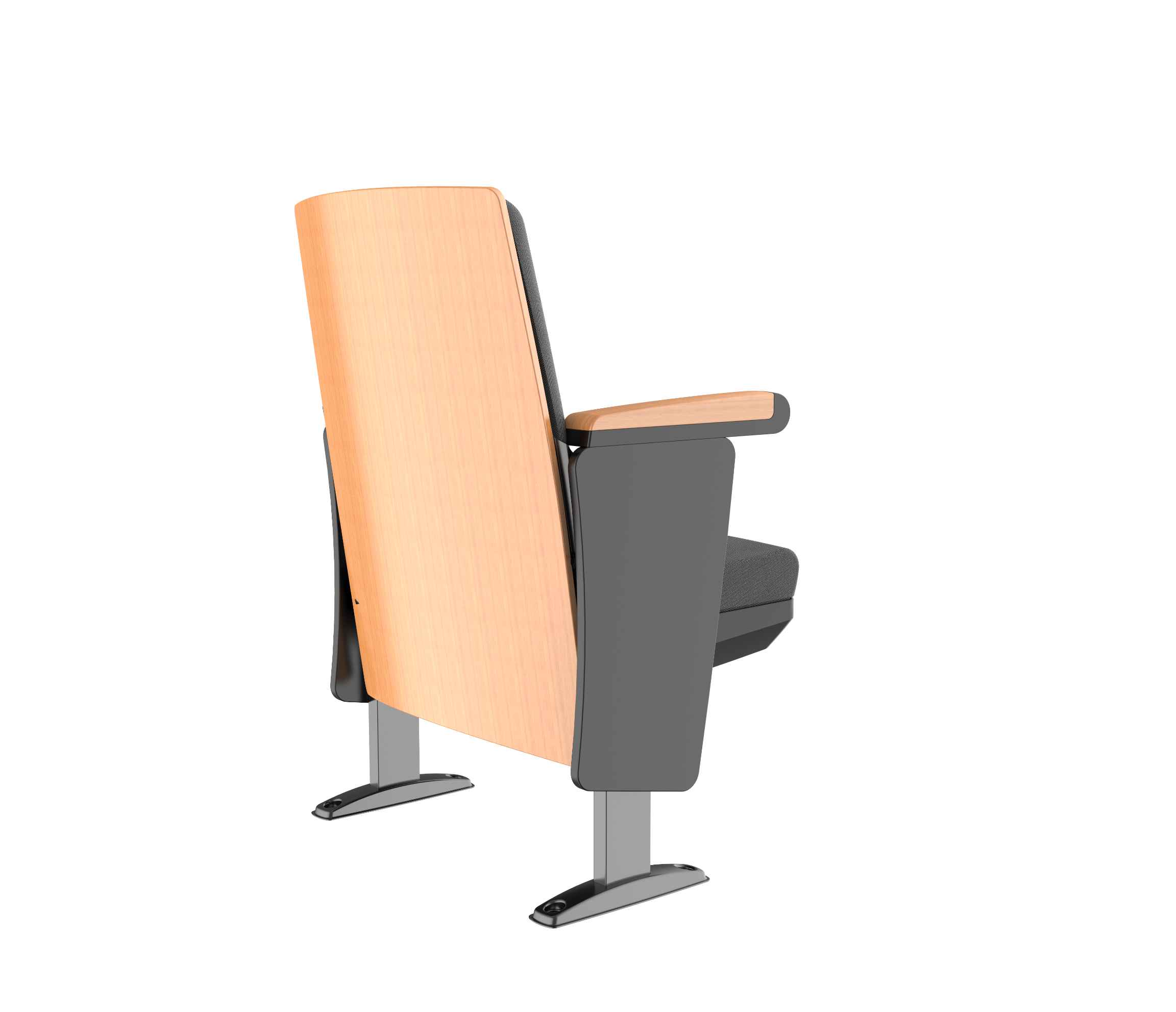

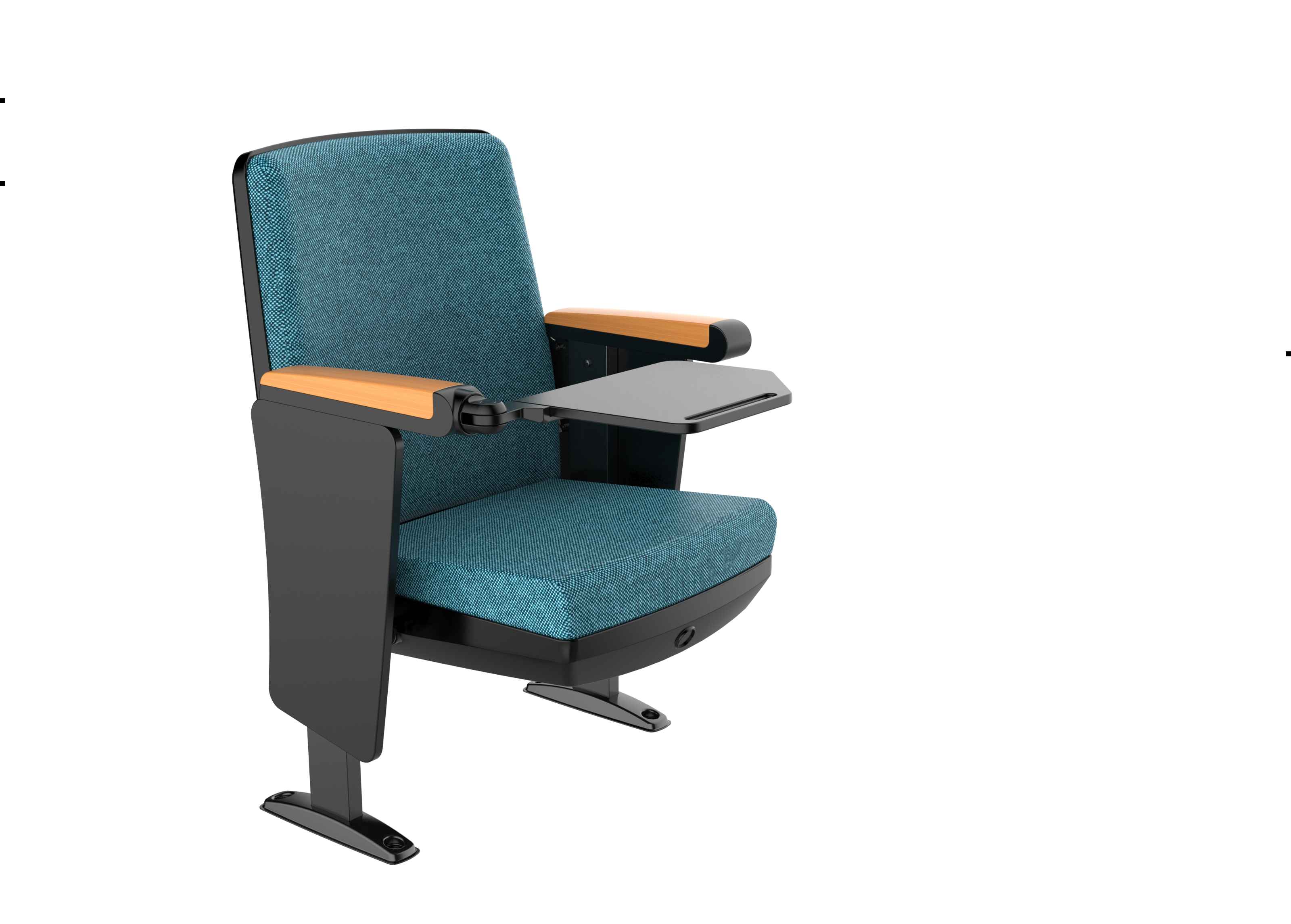

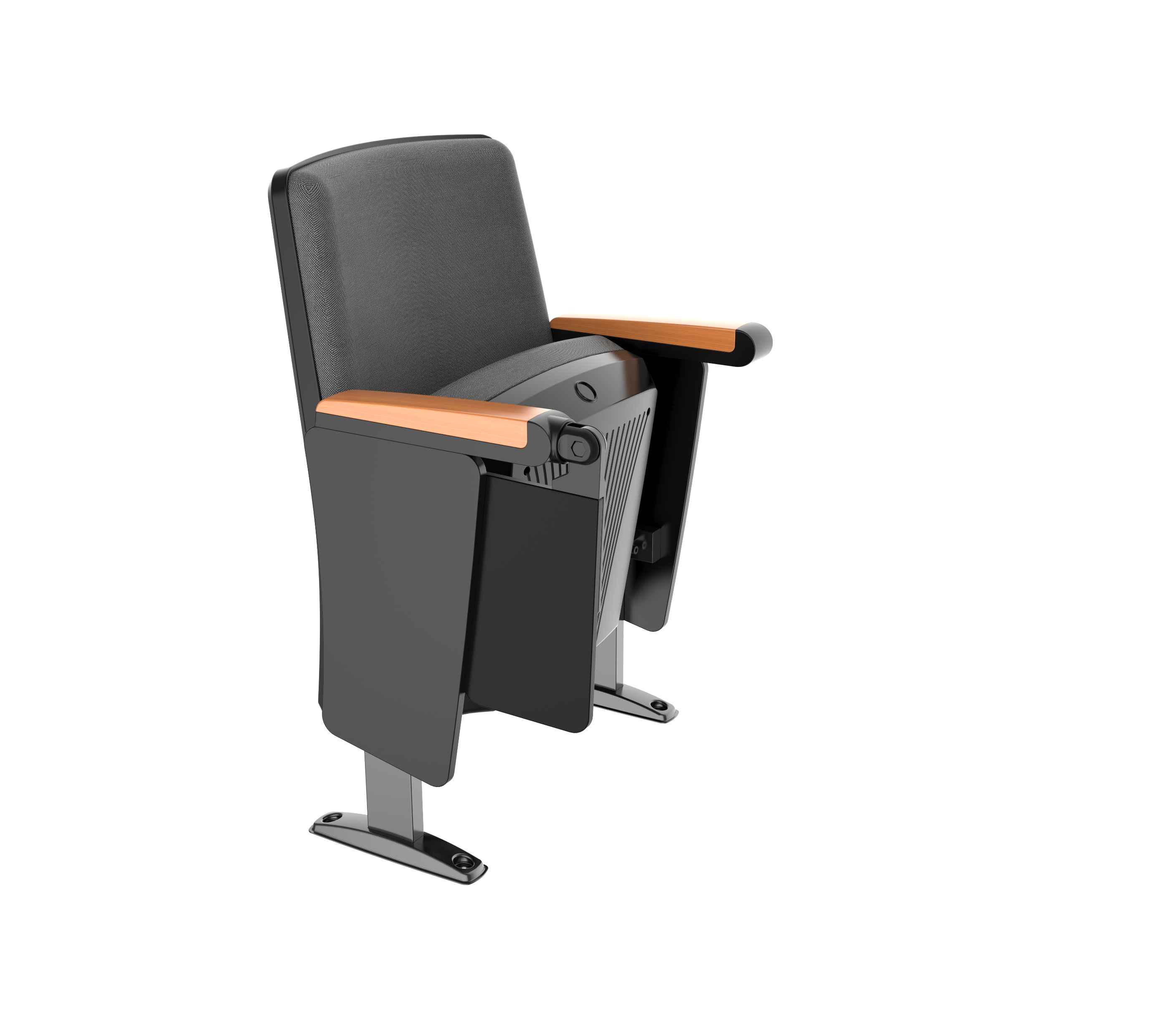

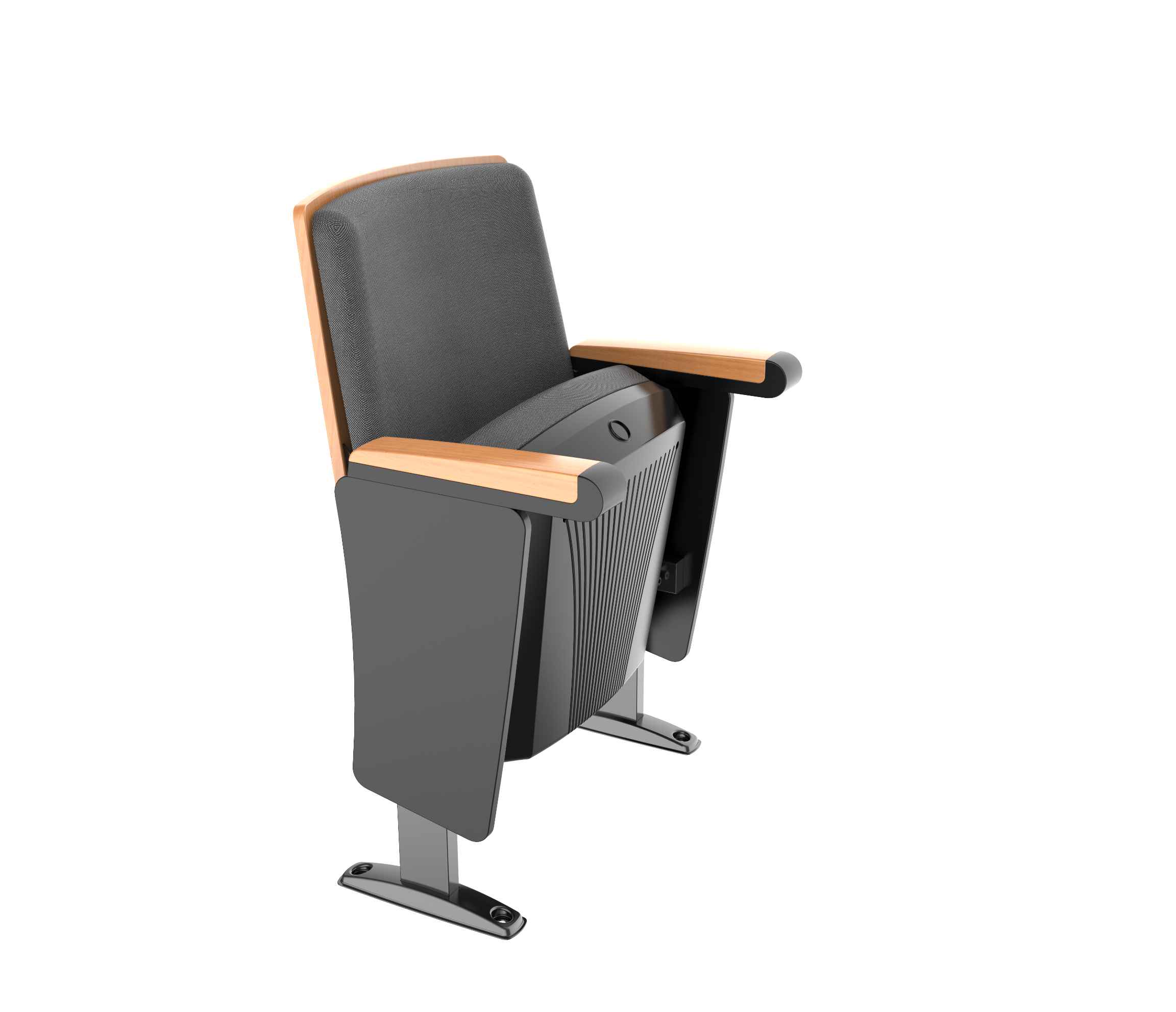

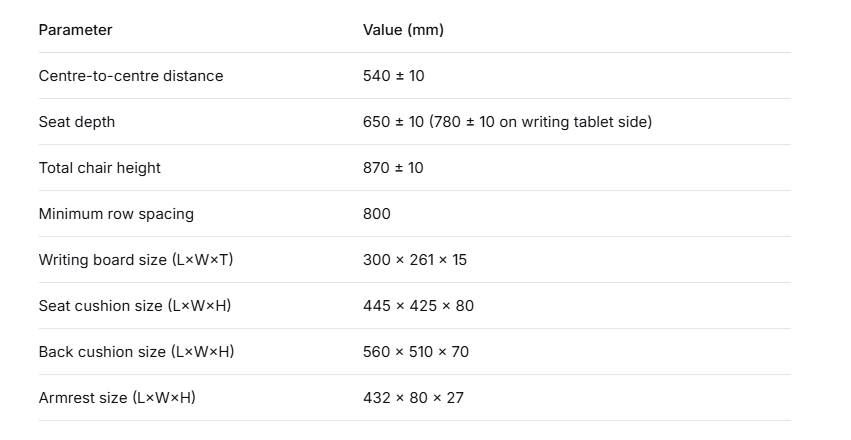

This auditorium seat model WL1203C-2 features a centre-to-centre distance of 540±10 mm, seat depth of 650±10 mm (780±10 mm on the writing tablet side), total height of 870±10 mm, and minimum row spacing of 800 mm. The writing board measures 300×261×15 mm, made of ABS injection molding with an integrated die-cast aluminium head and damping rotation. Seat cushion size is 445×425×80 mm with density 50-55 kg/m³, and back cushion size is 560×510×70 mm with density 45-50 kg/m³, both made of high-resilience antibacterial polyurethane foam. Armrests are crafted from imported solid oak (432×80×27 mm), with a bracket featuring phosphating and electrostatic spraying (72h salt spray resistance). The seat and back outer shells are PP injection molded (seat shell ≥1.6 kg, back shell ≥1.5 kg), with 15 mm high-quality curved board inner panels. The return mechanism uses double torsion springs and rubber pads for silent operation. The stand is made of 1.8 mm cold-rolled steel with fireproof board veneers. Ideal for high-end meeting rooms, auditoriums, screening rooms, multi-functional halls, and conference centers.
